1/3 HP 4 CFM Air Vacuum Pump HVAC A/C Refrigerant Kit with AC Manifold Gauge Set and Leak Detector

: In stock

: Automotive

: XtremepowerUS

$194.95 $599.95


Have a Question?

Be the first to ask a question about this.

Ask a Question

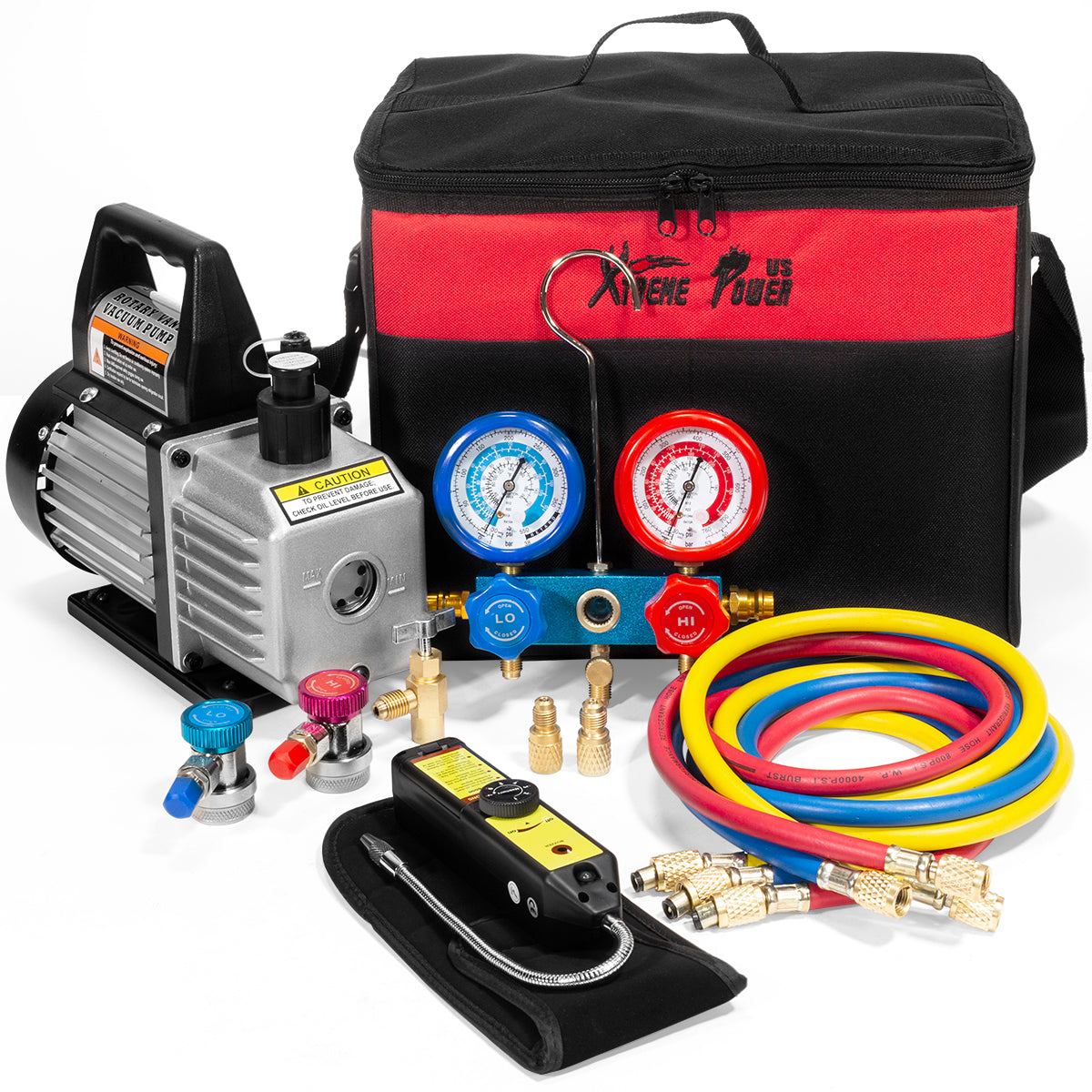

The XtremepowerUS Air Vacuum Pump HVAC Refrigerant Kit is a convenient kit used to self-diagnose, recharge, and service A/C systems. Designed to be efficient, by eliminating all moisture from conditioning systems in a short period of time, making it safe and easy to add refrigerant. Can be used for multiple jobs such as purging and filling the A/C unit, repairing A/C or drains on refrigerators, and much more. This A/C Manifold Gauge Set can be used to test, evacuate and fill automotive or household air conditioning systems. In addition, this set comes with a portable tote bag that you can easily carry or for safe dust-free storage.

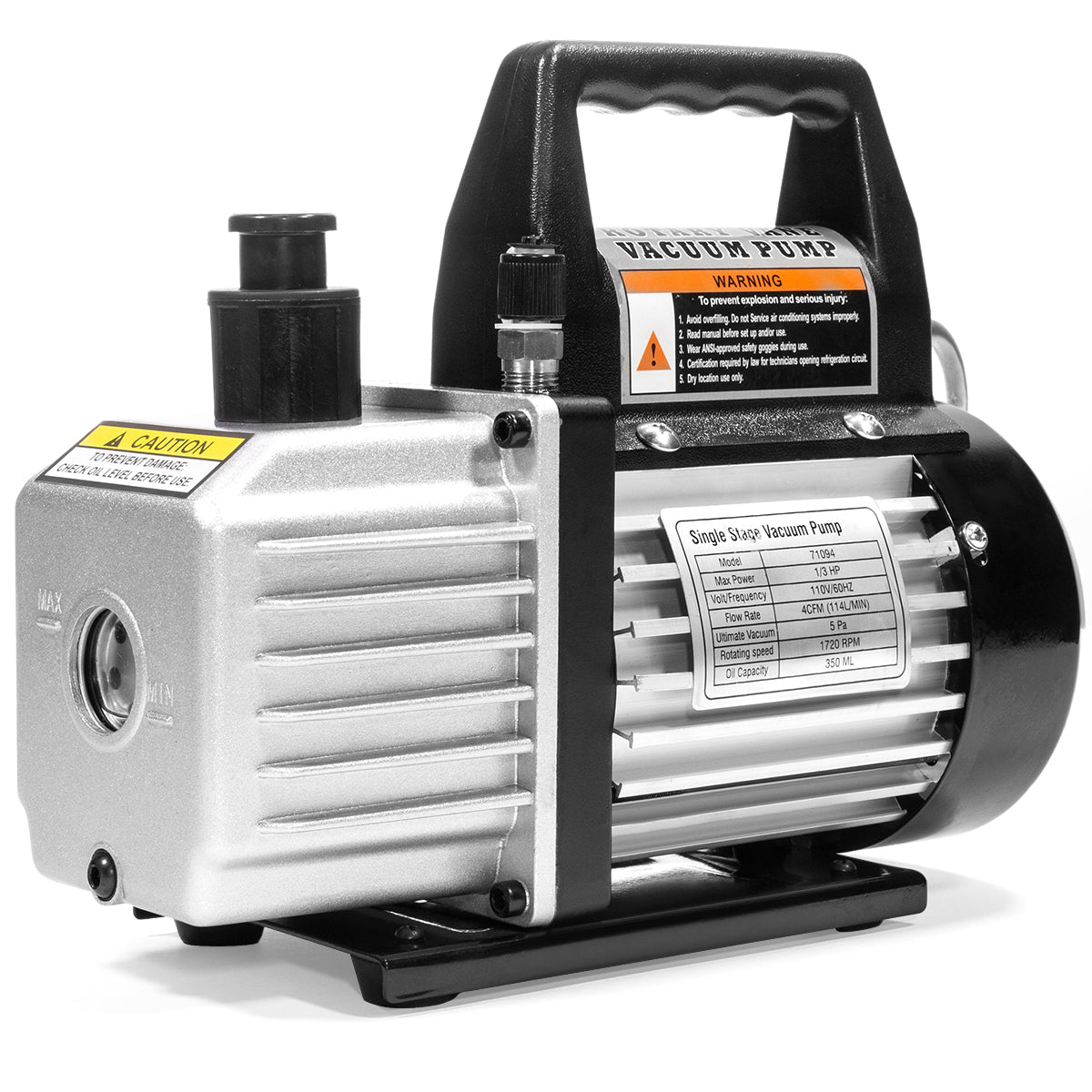

  • Simple but powerful: XtremepowerUS 1/3 HP 4 CFM 1-stage rotary air vacuum pump is designed to have high efficiency and low noise output with internal high volume cooling fan for extended use
  • Heavy-duty casing die-cast aluminum alloy casing enables the vacuum pump to be light and durable at the same time, equipped with brass fitting tethered safety caps to prevent oil leaks during transportation and handling
  • Easy oil change: the vacuum pump features a simple oil fill port for a clean pour and oil drain plug positioned beneath the oil reservoir to quickly drain when needed, checking the spillage meter will help to ensure the proper level of oil

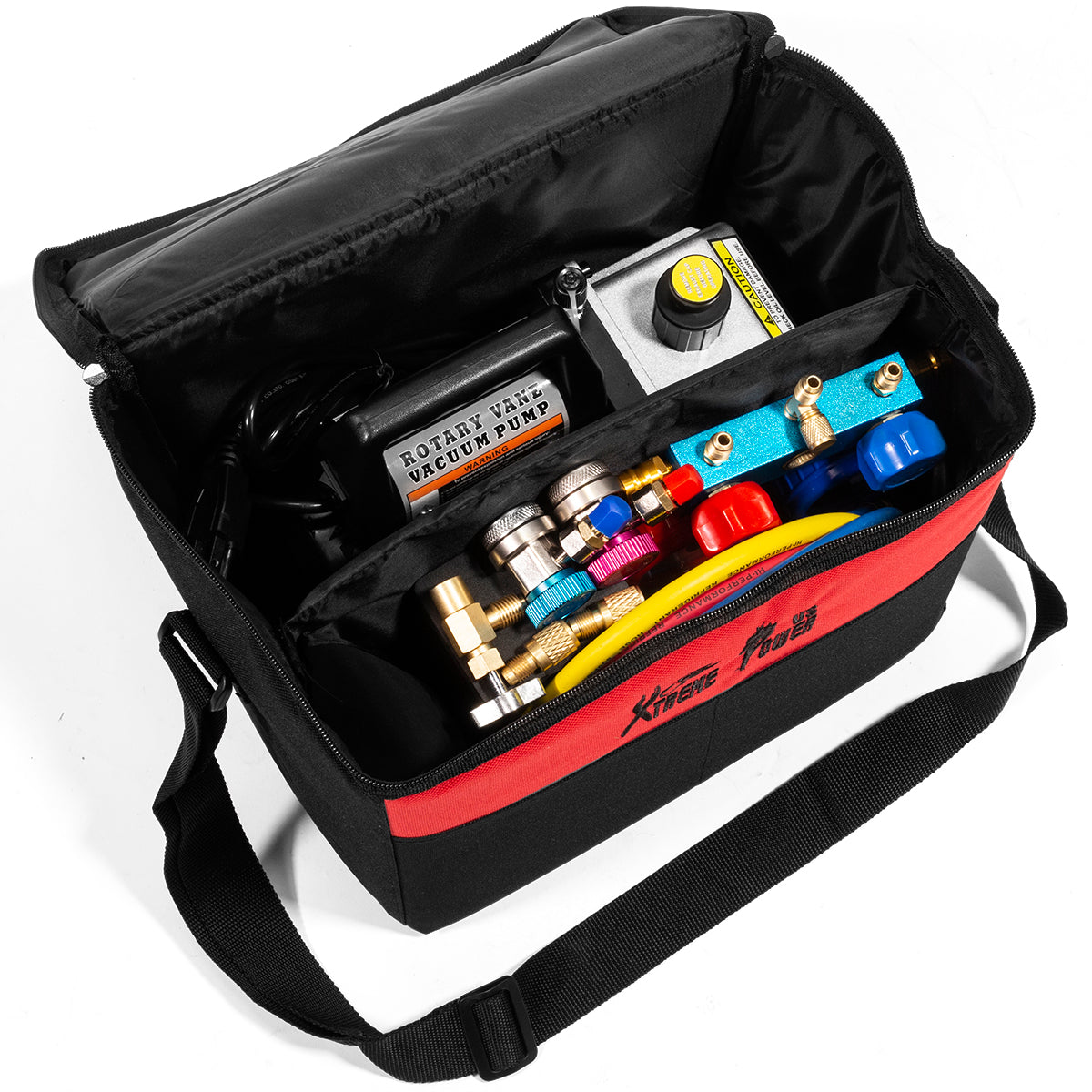

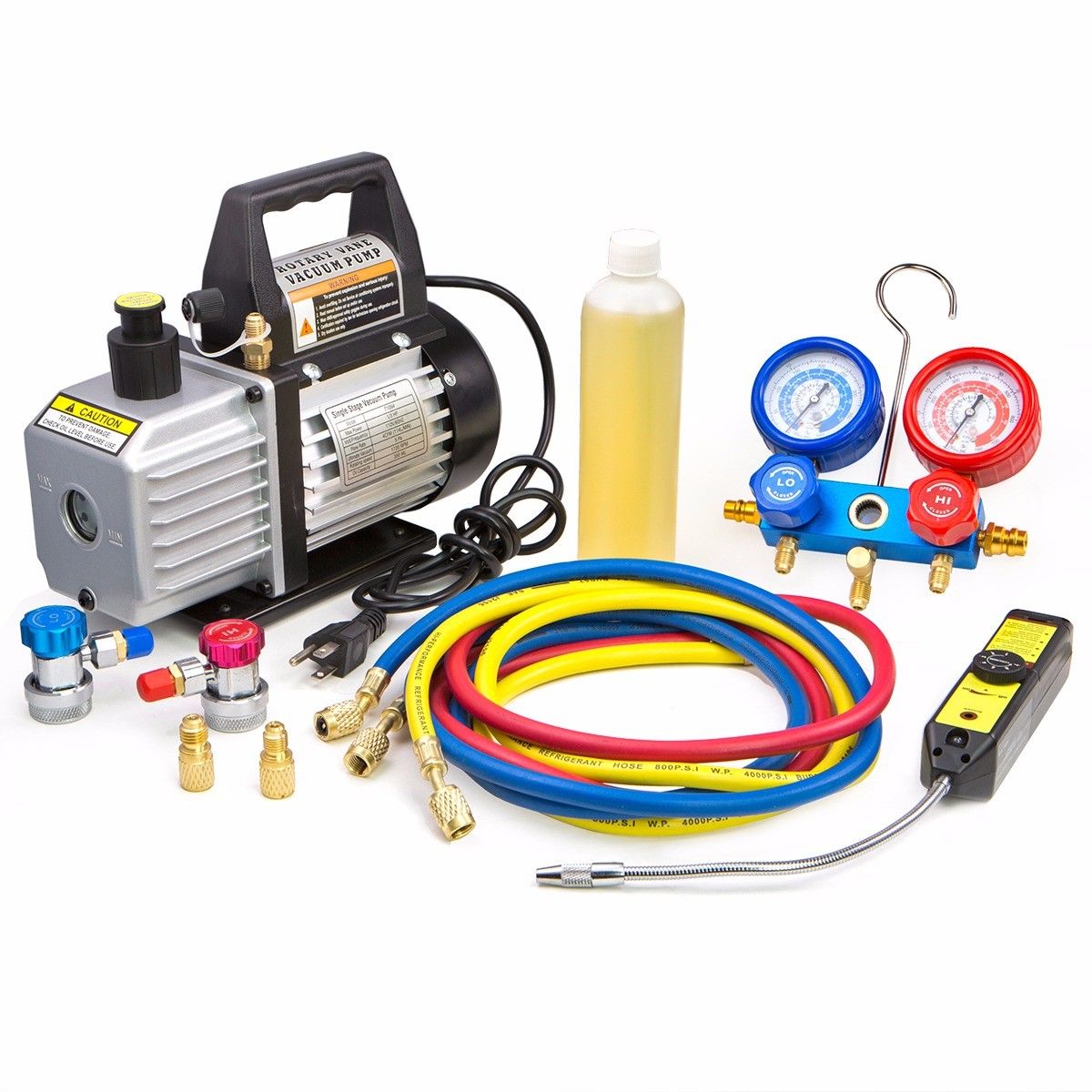

  • Included multi-colored set of three 36 in. hoses, manifold gauge, leak detector, oil bottle, accessories, and storage bag to keep equipment clean and dust free

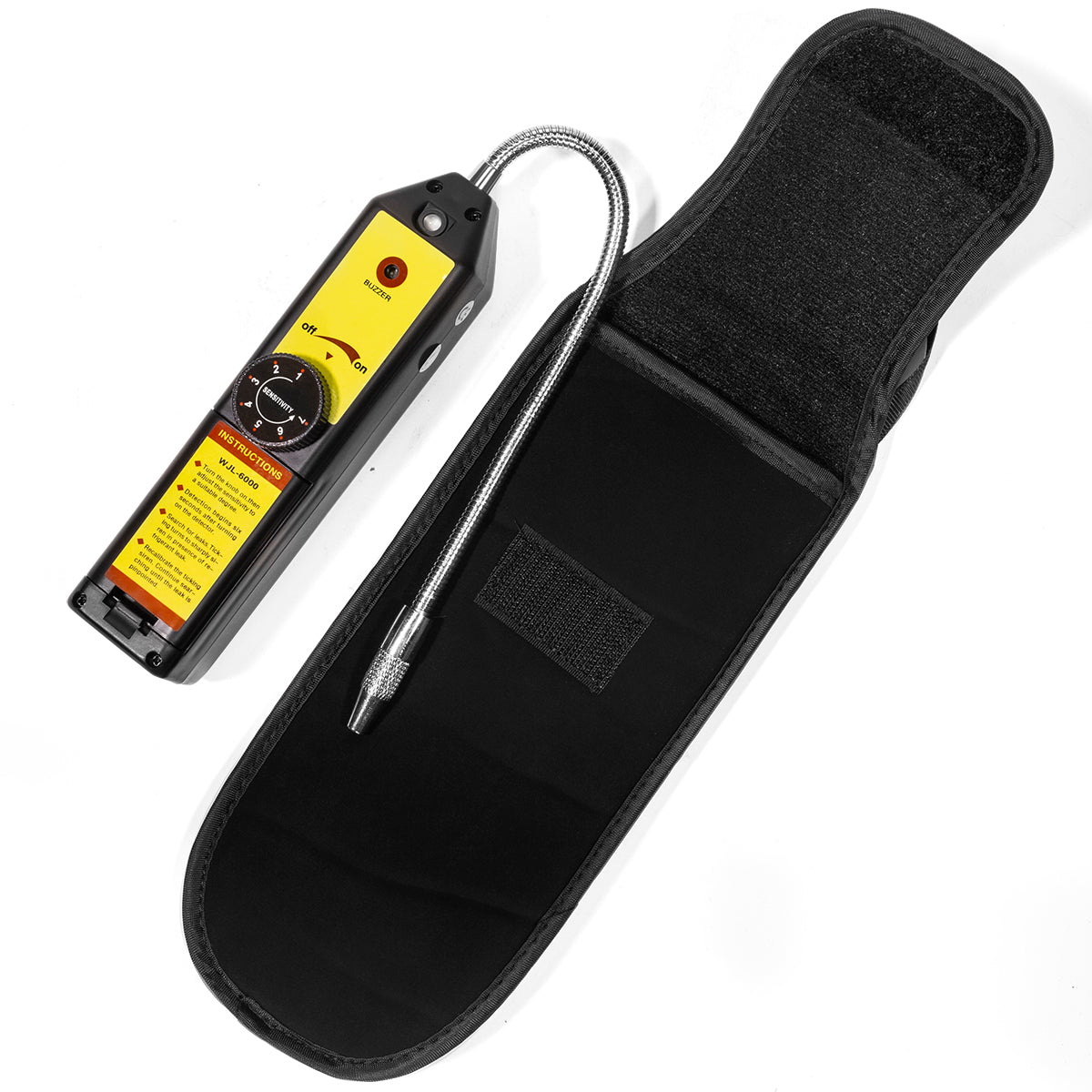

  • Leak detector??ícan be sensitivity adjusted to automatically detect all kinds of halogen refrigerant gases
  • Meets and exceeds 1/4??Ñ Standard SAE specific requirements for refrigerant permutation

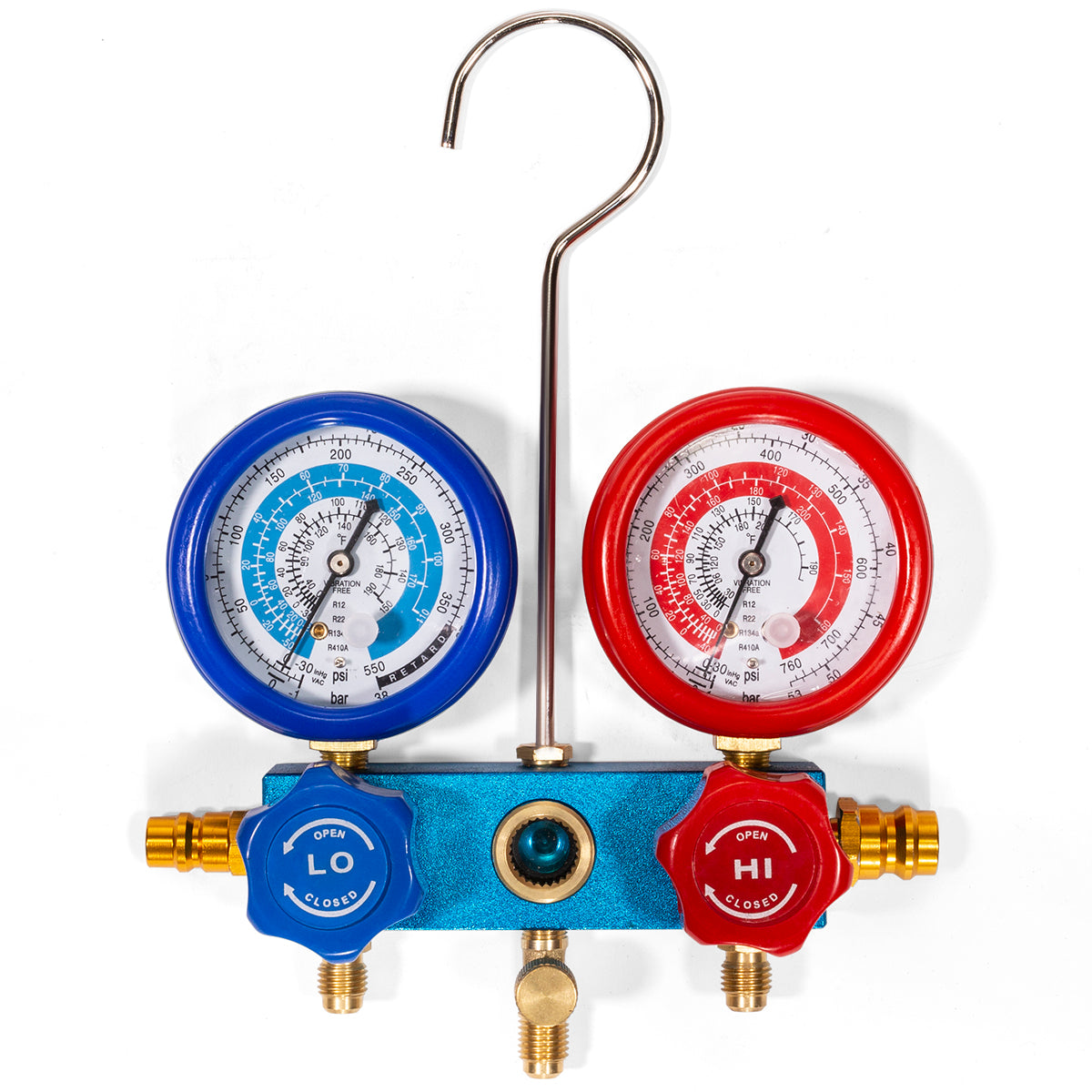

  • The HVAC service gauge set is great for diagnosing and repairing AC systems, ideal use for R134, R134A, R12, R22, R22A, R404A, R407C or R502



  • Tool Product Type: HVAC Diagnostic Tool
  • Free Air Displacement: 4 CFM
  • Horsepower: 1/3HP
  • Voltage/Frequency: 110V/60hz
  • Microns Rating: 37.5 microns (5pa)
  • Burst Pressure: 3000psi
  • Maximum Working Pressure: 600psi
  • Manifold Blue Gauge (low): 0 psi to 150 psi
  • Manifold Red Gauge (high): 0 psi to 500 psi
  • Oil Capacity: 350 ml
  • Inlet Port: 1/4" Flare


Package Content:

  • Manifold Gauge Kit
  • Vacuum Pump
  • Carrying Tote
  • Leak Detector
